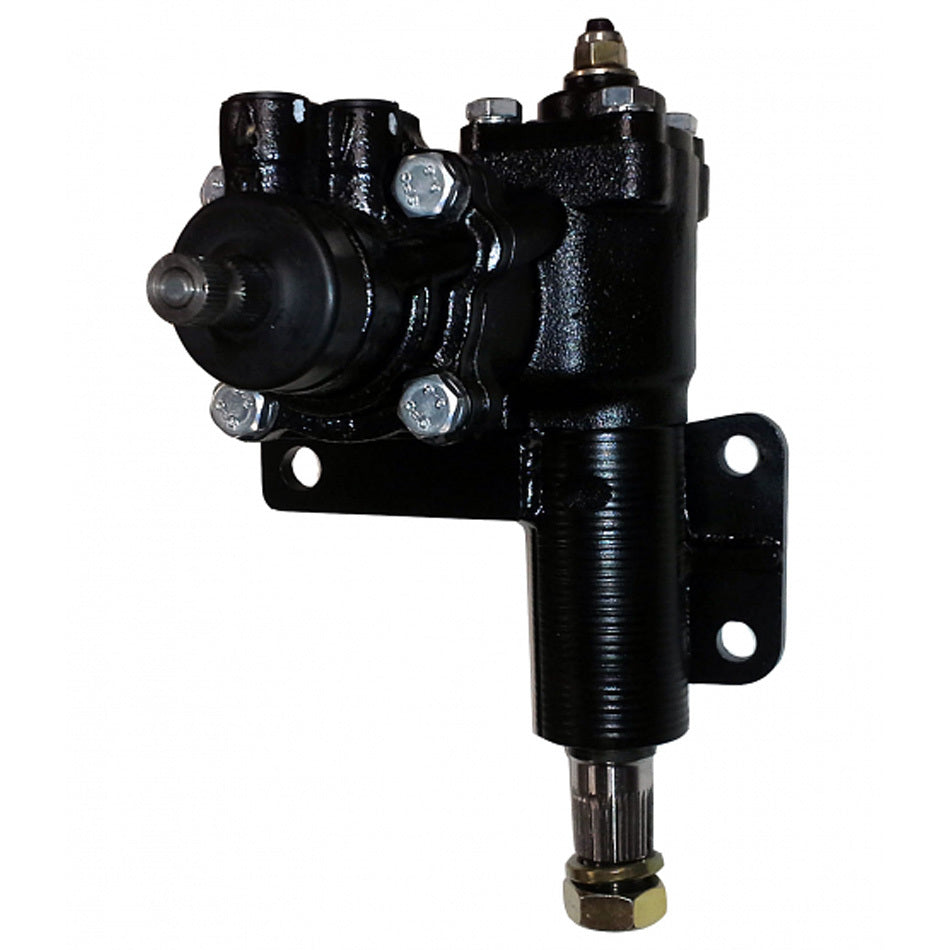

Borgeson Power Steering Box 62-82 Mopar 1-1/4in Sector BRG800127

Steering Box - Power - 3-Bolt - 11/16 in 36 Spline - 14 to 1 Ratio - Iron - Black Paint - Mopar 1962-82 - Each Brand-BORGESON MPN 800127 . **NOTE: Truck Freight NO

Borgeson has now developed a modern power steering box for the 1965-1979 Mopars. This box fits both factory power & manual steering cars. The Borgeson conversion box offers a 14:1 quick ratio, firm modern power steering feel, drastically increased header clearance and a 10# weight savings over a factory power box. This box bolts directly to the stock K-member mounting location and fits the original 1-1/4” pitman arm. The steering column will need to be shortened for installation of this conversion box. Use of a power steering cooler is highly recommended in these applications. All Borgeson power steering boxes are assembled and tested in the USA from globally sourced components and have a 3 year warranty. WARRANTY
NOTE: This box will fit all original Mopar 1-1/4” pitman shafts. If you car has the smaller 1-1/8” pitman shaft you will need to purchase part #800126.

STEERING COLUMN MODIFICATIONS
The original steering column shaft will need to be cut and shortened for installation. Connection to the box is then made by drilling and pinning our #036425 Mopar vibration reducing universal joint coupling to the shortened steering column shaft. Drill bit and pins included with coupler.

800127 SPECIFICATIONS:

800127 Installation Drawing
Input Shaft: 11/16"-36 Spline

Pitman Shaft: 1-1/4" Mopar with 32 Splines and 4 Master Splines

Pressure Port: 16mm X 1.5 Flare (Located closest to engine)

Return Port: 16mm X 1.5 Flare (Located closest to input shaft)

Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal

Flow Rate: 2.0-2.5 GPM Flow Rate Recommended
